Server Detail Page

The Server Detail page (URL: /ui/servers/<name>) is where you inspect and edit a single upstream server. It opens from the Servers list or via the macOS tray's per-server submenu.

The page has four tabs: Tools, Logs, Configuration, and Security. This page covers the Configuration tab — for the others, see the Dashboard and Activity Log pages.

Configuration tab​

The Configuration tab is a read-and-edit view of the server's mcp_config.json entry. It uses dedicated cards for each block — General, Connection, Headers, Environment Variables, Docker Isolation, Status, Health.

This page focuses on the two cards introduced with the per-key editing feature: Headers (HTTP / streamable-http servers) and Environment Variables (stdio servers). They share an identical visual language and the same set of affordances.

Headers card​

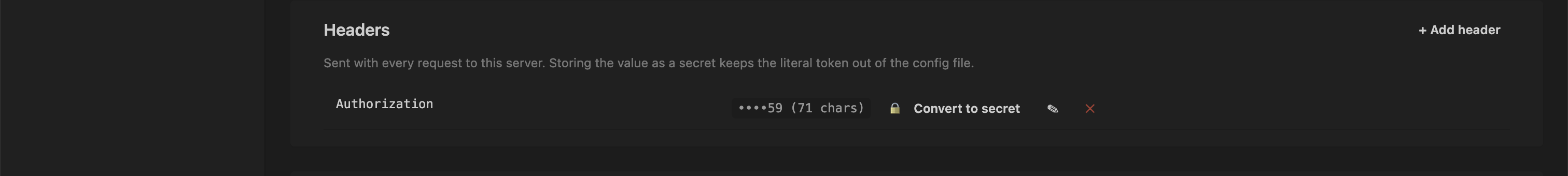

Headers card showing a masked Authorization value with Convert-to-secret button

Each header row shows:

ColumnWhat it is
KeyThe header name (e.g. Authorization)
ValueEither a masked literal (••••<last2> (<N> chars)), a ${keyring:NAME} chip, or a ${env:VAR} chip
Actions🔒 Convert to secret · ✎ Edit · ✕ Delete (variable set per row type)

Value formats​

  • Masked literal — ••••59 (71 chars) — what you see for sensitive headers (Authorization, X-API-Key, Cookie, etc.) when reveal_secret_headers is off (the default). The full secret is stored in mcp_config.json on disk; the mask is only how the API presents it.
  • ${keyring:NAME} chip — the value is a reference to an OS keyring entry. The chip shows the keyring name so you can find the underlying secret on the Secrets page.
  • ${env:VAR} chip — similar, but resolved from the mcpproxy process's environment.
  • Plain string — non-sensitive headers (e.g. X-Trace: on) show their literal value.

Add a header​

Click + Add header at the top right of the card. Two inputs appear (name + value). Hit Enter or click Add to commit. The new header is upserted via a JSON Merge Patch and the row appears immediately.

Edit a header​

Click the pencil icon next to a row. The value cell turns into a text input. Save (or Cancel) the change. The PATCH only sends this one key, so every other header stays exactly as it was — including the real plaintext behind any masked rows.

Delete a header​

Click the ✕ icon and confirm. The header is deleted with a JSON Merge Patch that sets the key to null:

PATCH /api/v1/servers/synapbus
Content-Type: application/json

{"headers": {"X-Stale": null}}

Other keys are preserved.

Convert a header value to an OS keyring secret​

This is the safe way to take a Bearer token out of your config file. Click the 🔒 icon next to a literal value to open the modal:

Convert-to-secret modal with a pre-suggested name

The modal asks for a secret name (pre-suggested as <server>-<key>, all lowercase and hyphen-sanitised) and previews the final reference. Hit Convert:

  1. The backend reads the real plaintext value from mcp_config.json.
  2. Stores it in the OS keyring under the name you chose.
  3. Rewrites the header field with ${keyring:<name>}.

All atomic — either the whole operation succeeds or nothing changes. The row immediately transforms from a masked literal into a keyring chip.

Why this matters: the Web UI never has to see or transmit the plaintext. The browser doesn't even need to be able to read the masked value — the backend has it. This is what makes the affordance work for sensitive headers the API redacts.

The same flow exists in the macOS tray's Edit dialog.

Environment Variables card​

For stdio servers, the Environment Variables card behaves identically to Headers. Same row shape, same actions, same Convert-to-secret modal. Stdio env values aren't redacted on the wire today (only HTTP headers are) so masked rows are computed client-side, but the affordances are the same.

A common pattern is to start a stdio server with an OPENAI_API_KEY=<paste> literal during onboarding, then click Convert to secret to move it into keyring once you're sure the server works.

Behind the scenes​

The Configuration tab is read-only against GET /api/v1/servers and writes back via PATCH /api/v1/servers/{name}. Every per-row action is a minimal JSON Merge Patch. The flow is documented in detail in the REST API › PATCH section and in Upstream Servers › Headers, Environment Variables, and Secrets.

The same operations are available from the CLI — see Management Commands › Patch Headers / Env — and from the macOS tray's Server Detail dialog.
